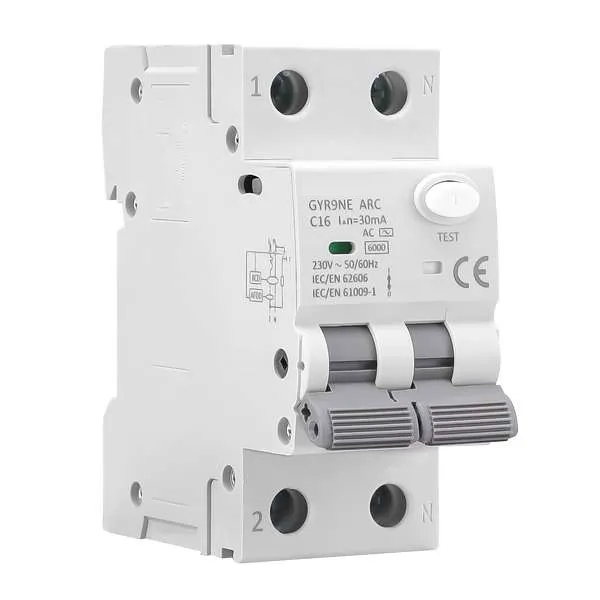

GYR9NE-ARC series arc fault detection device are widely used in household and similar AC circuits with a rated current of 40A and below.
The arc fault protection unit of GYR9NE-ARC series,can detect and identify the series arc fault, parallel arc fault and ground arc fault in circuits;For example: the aging, damage and humidity of the insulation layer of the line are prone to arc fault. When the GYR9NE-ARC series arc fault detection device detects that there is an arc fault in the line, it will automatically trip and cut off the power.
The GYR9NE-ARC series AFDD is an advanced arc fault detection and protection solution. As a modular residual current breaker with overcurrent protection (RCBO), it combines fire prevention technology with robust electrical safety for residential and commercial AC circuits (rated up to 40A). This 1P+N circuit breaker intelligently detects and distinguishes between normal operational arcs (e.g., from switches) and dangerous series, parallel, or ground fault arcs—automatically cutting off power within milliseconds to eliminate fire risks.
Key features include integrated leakage protection (30mA/100mA/300mA sensitivity, Type A/AC) and overvoltage detection (275±5% tolerance), ensuring comprehensive protection against electrical hazards. With a Type C tripping curve and 6kA breaking capacity, it responds instantly to overloads, short circuits, and ground faults while complying with IEC/EN62606, IEC/EN61009-1, GB/T31143, and GB16917.1 standards.
| Compliant with | IEC/EN62606、IEC/EN61009-1、GB/T31143、GB16917.1 |
| Rated voltage Ue | 230V~ |
| Rated insulation voltage Ui | 400V |
| Rated impulse withstand voltage Uimp | 4kV |
| Rated current (A) | 6, 10, 16, 20, 25, 32, 40 |
| Pole number | 1P+N |
| Instantaneous trip | type C |
| Breaking capacity | 6kA |
| Rated residual current (mA) | 30, 100, 300 |
| Operating characteristics when the residual current has DC component | type AC, type A |
